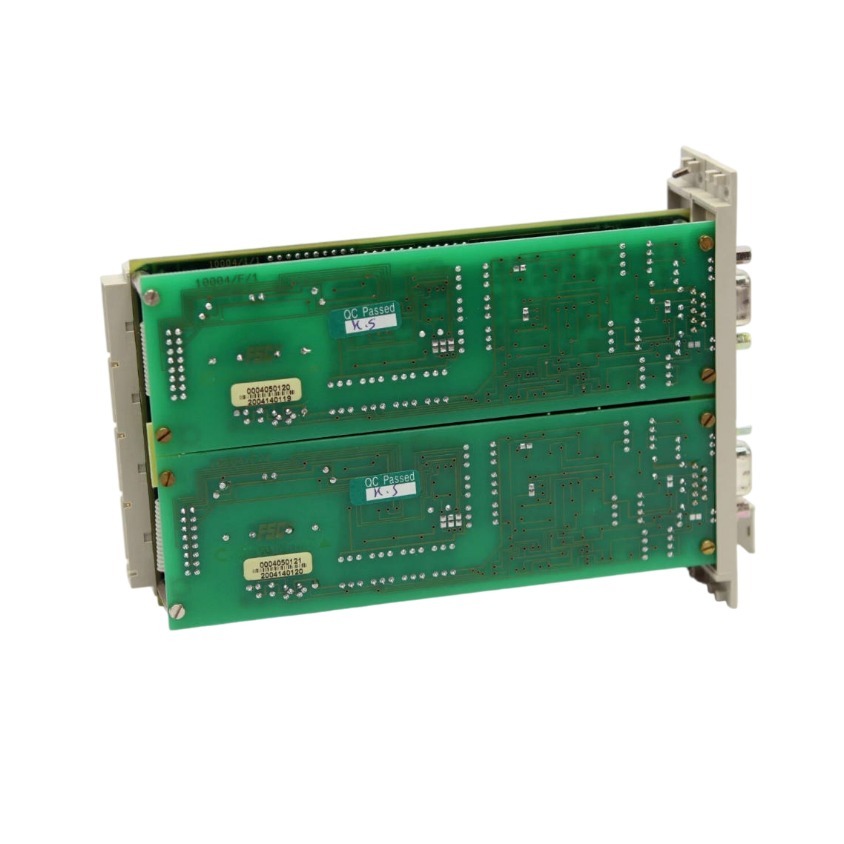

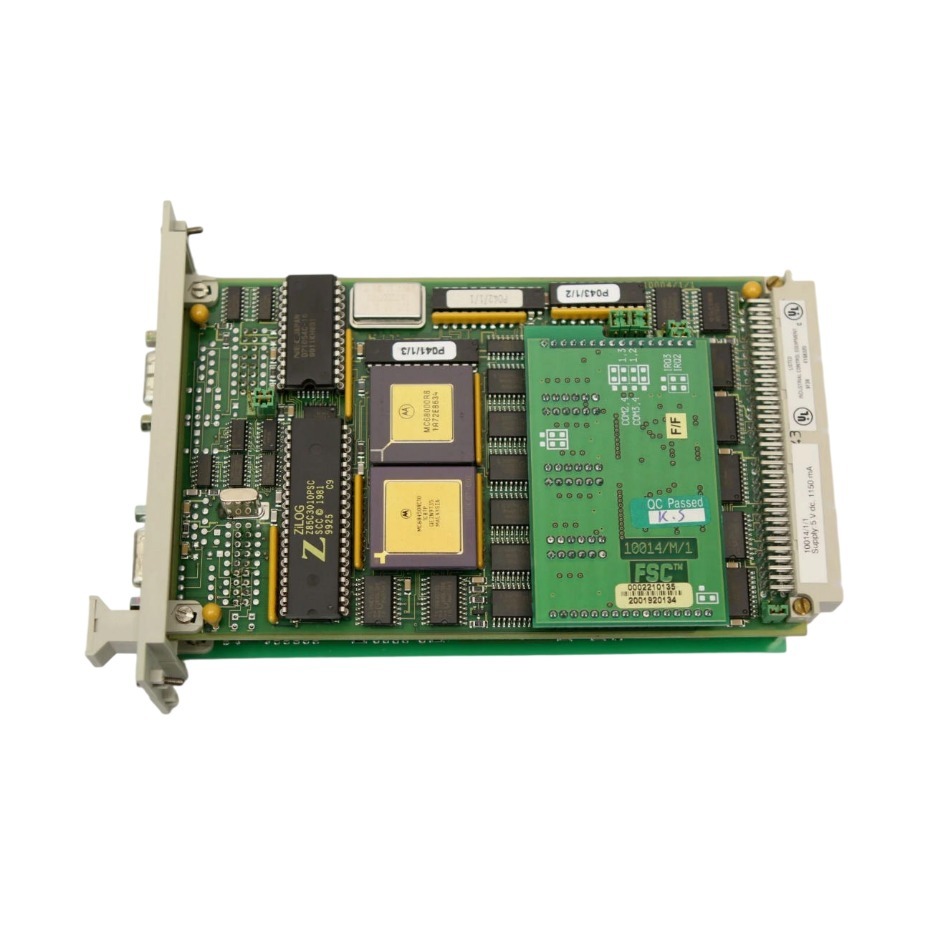

10014/F/F Dual Port Communication Module for Safety Control Systems

The 10014/F/F Dual Port Communication Module is designed for Fail Safe Control (FSC) systems, providing a communication interface for transferring information between system components within an industrial safety control architecture. Its dual-port design supports communication functions required by the FSC platform and helps connect different sections of the control system.

Unlike central processing modules such as the 10012/1/2, the 10014/F/F focuses on system communication rather than primary control logic execution. This makes it an important component for maintaining data exchange within established safety control installations.

• Dedicated Communication Function: The 10014/F/F is designed around communication rather than general-purpose field signal acquisition. Its role is to facilitate data exchange within the safety control architecture, helping different system components communicate as part of an integrated FSC installation.
• Dual-Port Architecture: The dual-port configuration provides the module with dedicated communication connectivity within the system. This is particularly relevant in established control architectures where dependable communication between system sections is necessary for coordinated operation.
• Supports Legacy System Maintenance: Many industrial facilities continue to operate established FSC installations over long service periods. When communication hardware requires replacement, a compatible 10014/F/F can help maintain the existing system architecture without unnecessarily redesigning the wider control system.

Before installing a replacement 10014/F/F, engineers should verify the existing FSC system configuration and confirm the communication architecture in which the module is installed. Particular attention should be given to the connected system components and the required communication interfaces.

Correct hardware matching helps maintain stable data exchange and avoids compatibility issues during maintenance or system restoration.

• Fail Safe Control (FSC) systems
• Safety Instrumented Systems
• Industrial process safety
• Emergency shutdown applications
• Oil & gas facilities
• Chemical processing plants
• Power generation facilities
• Existing safety control system maintenance
• Legacy control system lifecycle support

During scheduled maintenance of an established industrial safety control system, a communication module required replacement without changing the overall FSC architecture. The 10014/F/F Dual Port Communication Module was selected to maintain the existing communication structure between system components.

By replacing the communication module while retaining the established control architecture, the maintenance team could focus the intervention on the affected hardware instead of carrying out a larger system redesign.
